ZHEJIANG XINYI INTELLIGENT DRIVE TECHNOLOGY CO.,LTD

Linear Actuator For Recliner
Linear Actuator For Recliner
Linear Actuator For Recliner
Linear Actuator For Recliner
Linear Actuator For Recliner

Linear Actuator For Recliner

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 7 Days

Contact Now Add to Basket

Basic Info

    Model No.: XYA3

    Certification: FCC, CCC, SGS, RoHS, ISO, CE

    IP Rating: IP54

    Limit Switch: Built-in

    Voltage: 24VDC

    Standard Stroke: 500mm

    Max Thrust: 6000N

Additional Info

    Productivity: 400,000pieces

    Brand: Xinyi

    Transportation: Ocean,Land,Air

    Place of Origin: Shaoxing,Zhejiang,China

    Certificate: ISO9001

    Port: Ningbo Port,Shanghai Port

Product Description

Product Description:

Linear Actuator For Recliner

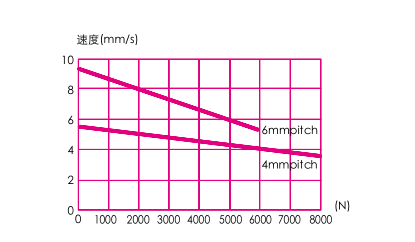

Xinyi XYA3 series Linear Actuator is primily used in the smart furniture and medical market,and can also be applied to a wide of other medical applications.The current &speed are tested when the actuator is extending under push load.

The Input Voltage for this linear actuator for electric recliner chair is 12VDC/24VDC/36VDC.In addition,the XYA3 Lift Linear actuator is available with an optional IP 54,IP 54.Smart Furniture is typical application for the XYA3 series linear actuator. 400MM Stroke Recliner Motor are high quality with low noise,over-load protection are installed.8000N Pride Chair Motor are widely used in machine tooles and industrial machinery,in computer peripherals such as disk drives and printers,in valves and dampers,and in many other places where linear motion is required.8000N Stair Lift Chair are quiet and powerful design.Recliner motor chair,the thrust up to 8000N in push,and up to 6000N in pull.Elegant and compact design with small installation dimensions.

ZHEJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY CO.LTD will provide a full-service to keep you up and running and meet your unique equipment requirements. If you are interested in China Lift Chair Actuator Linear, You will be amazed by the variety of the product choices such as linear actuator, 12VC MOTOR,GEAR MOTOR.



Features:Basic and economic design,Up to 8000N load capacity,direct mounting on control box possibility,Long lifetime.


Mimimum installation size(distand between the push holes and the two holes before and after the return of the putter)L=S(stroke)+175mm,the distance between the push and the two holes before and after is extended to =2SX(stroke)+175mm.

Standard protection class:IP 54.Noise level 48 dB.


Application:Electric linera actuator for recliner will open and close the lift mechanism of power recliner or lift chair.Connects to motor handset hand control via 5 pin style connector,and connects to the power transformer via the stand 2 pin style connector.

General Features:

  • Voltage of motor: 12, 24, 36V DC or 24V DC (PTC)
  • Maximum load: 8,000N in push
  • Maximum load: 6,000N in pull
  • Maximum speed at full load: 23.4mm/s (with 1,000N in a push or pull condition)
  • Stroke:100~400(option>400)mm
  • Minimum installation dimension: ≥ Stroke+175mm
  • Color: Black or grey
  • IP rating: Up to IP54W
  • Certificate: IEC60601-1, ES60601-1, EN60601-1-2, EMC
  • Operational temperature range: +5°C~+45°C
  • Options: Safety nut, quick release, Hall sensors,Reed switch option
  • A3

6


Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector

FAQ

Warranty

1. If you did not receive product, we will full refund you. 2. If the product had quality problem, we will full refund you. 3. If the product was damaged by shipping company, we will full refund you.

Payment

Paypal,Alipay,Western union or bank transfer.

Shipping

1. All items listed in our store are in stock. Order will be delivered within 2 working days. 2. We use China post air mail but it takes long time. If you want fast delivery, please tell us before ordering and we will select the best shipping method. 3. Please make sure your address and phone is correct. If it is wrong, we do not care any more charge.



Looking for ideal Linear Actuator For Smart Furniture Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Recliner Chair Linear Actuator are quality guaranteed. We are China Origin Factory of 8000N Recliner Chair Motor. If you have any question, please feel free to contact us.

Product Categories : Linear Actuators For Smart Furniture > Linear Actuator For Lift Chair
