Linear Actuator Lift System
Linear Actuator Lift System
Linear Actuator Lift System
Linear Actuator Lift System
Linear Actuator Lift System

Linear Actuator Lift System

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 7 Days

Contact Now Add to Basket

Basic Info

    Model No.: XYA9

    Certification: FCC, CCC, SGS, RoHS, ISO, CE

    IP Rating: IP54

    Limit Switch: Built-in

    Voltage: 24VDC

    Standard Stroke: 500mm

    Max Thrust: 6000N

Additional Info

    Productivity: 400,000pieces

    Brand: Xinyi

    Transportation: Ocean,Land,Air

    Place of Origin: Shaoxing,Zhejiang,China

    Certificate: ISO9001

    Port: Ningbo Port,Shanghai Port

Product Description

Product Description:

Linear Actuator Lift System

Xinyi Corporation founded in 1990,had always been devoted to the research and developmengt of the industrial automation.2002 conpleted the first batch of 12V Manually Lifting Patient.Since then it has determined the automation of medical service &nursing and furniture as its main direction.

Actuator For Patient Lift exposes caregivers to a great risk of being injured. Therefore it is essential for us to improve their quality of life, and thus of their patients, by offering safe, ergonomic and efficient Lift Actuator Kit.

With this efficient and ergonomic system, quick lifting and smooth ramps,Xinyi`s Actuator For Electric Patient Lift can save care centres time, money and people`s health.

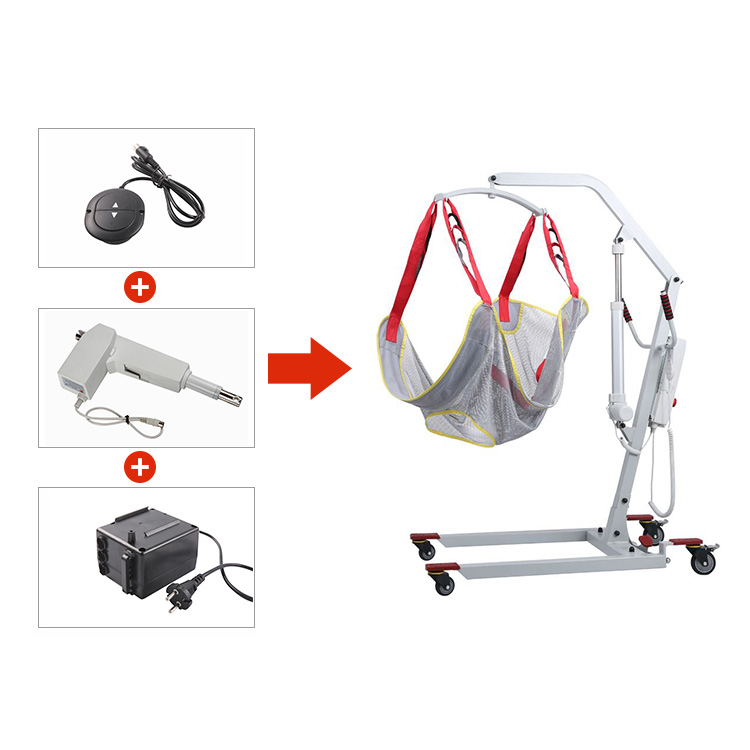

Xinyi`s product range for Patient lifts GEAR MOTOR contains lifting and leg spread ACTUATORS, control boxes and hand controls. Lift Chair Actuator Kit can also be connected to Xinyi's Service and Usage Tracking tools, RST10 and RUT10. Through these tools, the caregiver can control customized settings, perform service tasks, monitor system behaviour and export usage data.

In the list below are products that are suitable for patient handling systems.

Xinyi Linear Actuator For Patient Lift have the below features:

Emergency stop button

Cable management bracket

Electrical lowering button

Easy to charge

Easy installation

Technical data:

Input voltage:12VDC/24VDC/36VDC

Max.load:Thrust 6000N,Pull 4000N

Speed: (5mm/s 6000N) (10mm/s 3000N) (20mm/s 2000N) (40mm/s 800N)

Duty cycle:10%,stop for 18 mins after continuoulsy working 2 mins

Ip grade:IP 54

Limit switch:Built-in limit switch,non-adjustable

Operation temperature:+5℃~40℃

Min.install dimension:285mm(175+stroke) [From center of Mounting Holes]


Tail connector:90º rotation available

Memory function:optional



Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector


1. If you did not receive product, we will full refund you. 2. If the product had quality problem, we will full refund you. 3. If the product was damaged by shipping company, we will full refund you.


Paypal,Alipay,Western union or bank transfer.


1. All items listed in our store are in stock. Order will be delivered within 2 working days. 2. We use China post air mail but it takes long time. If you want fast delivery, please tell us before ordering and we will select the best shipping method. 3. Please make sure your address and phone is correct. If it is wrong, we do not care any more charge.

Looking for ideal 12V Manually Lifting Patient Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Actuator For Patient Lift are quality guaranteed. We are China Origin Factory of Actuator For Electric Patient Lift. If you have any question, please feel free to contact us.

Product Categories : Linear Actuators For Medical Care > Linear Actuator For Patient Lift
