6000N Linear Actuator For Adjustable Exam Table

Payment Type:
L/C,T/T,D/P
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Piece/Pieces
Transportation:
Ocean,Land,Air
Port:
Ningbo Port,Shanghai Port
Share:
  • Product Description
Overview
Product Attributes

Model No.XYA3

BrandXinyi

CertificationCE

IP RatingIP54

Limit SwitchBuilt-in

Voltage24VDC

Standard Stroke500mm

Max Thrust6000N

Supply Ability & Additional Information

Productivity400,000pieces

TransportationOcean,Land,Air

Place of OriginShaoxing,Zhejiang,China

CertificateISO9001

PortNingbo Port,Shanghai Port

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF

Product Description:

6000N Linear Actuator For Adjustable Exam Table



ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY 6000N Adjustable Exam Table Actuator create smooth lifts and adjustments in couches and tables for treatment and examination, and help improve ergonomics for practitioners. Specifications depend on individual needs and requirements. Whether you want a basic system for your treatment and examination couch/table, or require an advanced, customised solution, Low Noise Actuator For Electric Table has the product portfolio to design the right system setup for you using three different solutions. Below are examples for basic, medium and advanced systems.


Following are some of the benefits of using our actuator sLow Noise Lifting Exam Table:

· Simple Designs: OurHigh Speed Linear Actuator 12V have easy-to-install designs. DC MOTOR provide savings in terms of compact designs, less maintenance, high reliability, and easy repairs. Also, our electric ACTUATORS can maintain loads, even without continuous Power Supply, so they are less expensive and easier to operate.

· Small Footprint: We employ advanced technologies to build innovative actuator systems with a small footprint. Ergonomic Treatmement Actuator have a smaller number of components. This optimized design provides more flexibility in terms of application.

· Simple Assembly: Medical Examination Table can be easily connected with wires and cables. This simple assembly process helps save time, labor costs, and improves equipment performance.

· Supports Advanced Features: Our electrical LINEAR ACTUATORS can be integrated with programmable controllers that control various operations in advanced electrical couches and tables.

· Silent Operation: Our electric linear actuators and electric actuators are controlled by quiet electrical motors, which makes them suitable for various medical applications such as home care beds, hospital beds, etc.


General Features:

· Voltage of motor: 12, 24, 36V DC or 24V DC (PTC)

· Maximum load: 6,000N in push

· Maximum load: 4,000N in pull

· Maximum speed at full load: 23.4mm/s (with 1,000N in a push or pull condition)

· Stroke:100~400(option>400)mm

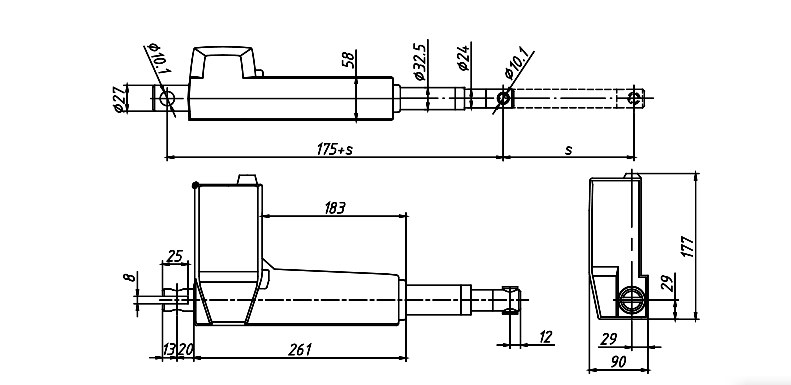

· Minimum installation dimension: ≥ Stroke+175mm

· Color: Black or grey

· IP rating: Up to IP54W

· Certificate: IEC60601-1, ES60601-1, EN60601-1-2, EMC

· Operational temperature range: +5°C~+45°C

· Options: Safety nut, quick release, Hall sensors,Reed switch option

A3


4


Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector





FAQ

Warranty

1. If you did not receive product, we will full refund you. 2. If the product had quality problem, we will full refund you. 3. If the product was damaged by shipping company, we will full refund you.

Payment

Paypal,Alipay,Western union or bank transfer.

Shipping

1. All items listed in our store are in stock. Order will be delivered within 2 working days. 2. We use China post air mail but it takes long time. If you want fast delivery, please tell us before ordering and we will select the best shipping method. 3. Please make sure your address and phone is correct. If it is wrong, we do not care any more charge.
