ZHEJIANG XINYI INTELLIGENT DRIVE TECHNOLOGY CO.,LTD

Actuator For Adjustable Wheelchair
Actuator For Adjustable Wheelchair
Actuator For Adjustable Wheelchair
Actuator For Adjustable Wheelchair
Actuator For Adjustable Wheelchair

Actuator For Adjustable Wheelchair

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 7 Days

Contact Now Add to Basket

Basic Info

    Model No.: XYA2

    Certification: FCC, CCC, SGS, RoHS, ISO, CE

    IP Rating: IP54

    Limit Switch: Built-in

    Voltage: 24VDC

    Standard Stroke: 500mm

    Max Thrust: 6000N

Additional Info

    Productivity: 400,000pieces

    Brand: Xinyi

    Transportation: Ocean,Land,Air

    Place of Origin: Shaoxing,Zhejiang,China

    Certificate: ISO9001

    Port: Ningbo Port,Shanghai Port

Product Description

Product Description:

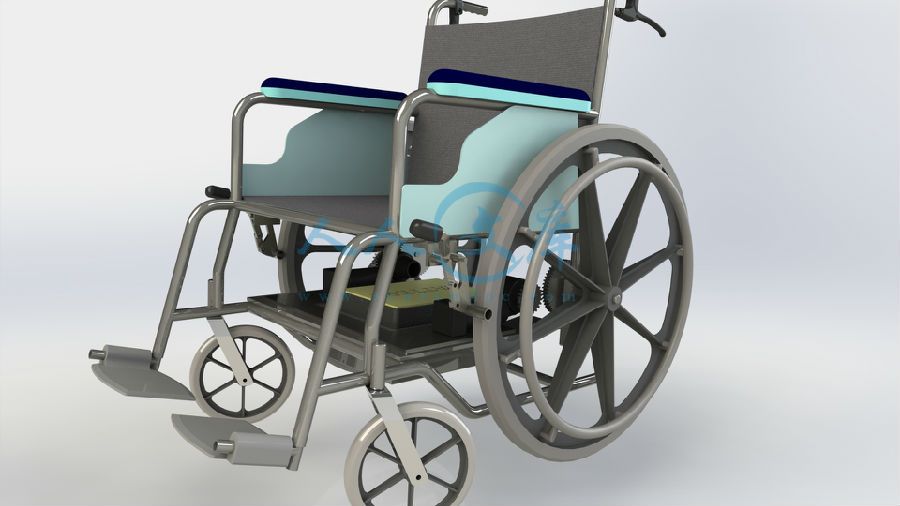

Wheelchair Lift Motor


ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY had always been devoted to the research and development of the Actuator For Electric Wheelchair

Linear Actuator For Wheelchair to provide the user with movement. Sitting in the same position can get tiring for Wheelchair Linear Actuator. Changing positions in a static wheelchair can make the person uncomfortable and could lead to pressure sores. Integrating a wheelchair with GEAR MOTOR can help provide movement to different parts of the wheelchair, which will allow users to adjust their positions.

ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY offers Wheelchair Lift Linear Actuator.These specialized ACTUATORS offer the following benefits:

· Quality raw materials engineered to perfection

· Reliability and safety

· Durable products

· Small in size

· Accurate vertical and horizontal adjustment

· Smooth and quiet operation

· Increased freedom of design

· Reduced maintenance due to use of high quality products


Technical data:

Input voltage:12VDC/24VDC/36VDC

Max.load:Thrust 8000N,Pull 6000N

Speed: (4.5mm/s 8000N) (5mm/s 6000N) (10mm/s 3000N) (20mm/s 2000N) (40mm/s 800N)

Duty cycle:10%,stop for 18 mins after continuoulsy working 2 mins

Ip grade:IP 54

Limit switch:Built-in limit switch,non-adjustable

Operation temperature:+5~40℃

Min.install dimension:315mm(175+stroke) [From center of Mounting Holes]

Max.stroke:450mm

Tail connector:90º rotation available

Memory function:optional

Colour:Black/Grey

timg

Noted:

When the stroke is less than 110mm,the Lmin is 283mm.If the stroke is more than 110mm,Lmin=175+Stroke

Lmin means the length when Linear Actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,stop automatically.

Stroke means the movement length of linear actuator.

Lmax=Lmin+Stroke

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,stop automatically.



Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector

produce linear actuator with best motor

We produce linear actuator with clean production line

FAQ

Warranty

1. If you did not receive product, we will full refund you. 2. If the product had quality problem, we will full refund you. 3. If the product was damaged by shipping company, we will full refund you.

Payment

Paypal,Alipay,Western union or bank transfer.

Shipping

1. All items listed in our store are in stock. Order will be delivered within 2 working days. 2. We use China post air mail but it takes long time. If you want fast delivery, please tell us before ordering and we will select the best shipping method. 3. Please make sure your address and phone is correct. If it is wrong, we do not care any more charge.

















Looking for ideal Actuator For Electric Wheelchair Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Actuator System For Electric Wheelchair are quality guaranteed. We are China Origin Factory of DC MOTOR System For Electric Wheelchair. If you have any question, please feel free to contact us.

Product Categories : Linear Actuators For Medical Care > Linear Actuator For Wheelchair
